型    號  CHSC

TYPE : CHSC

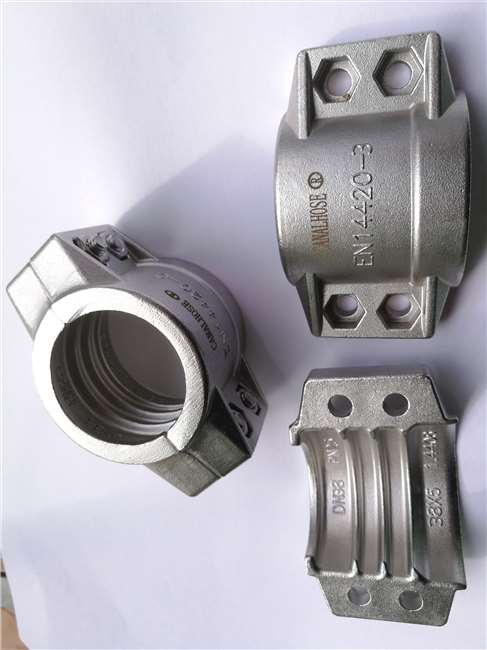

產品名稱: 安全管夾(SAFETY CLAMPS),管夾,兩片式抱箍

Product name : SAFETY CLAMPS, PIPE CLAMPS, TWO-PIECE CLAMPS

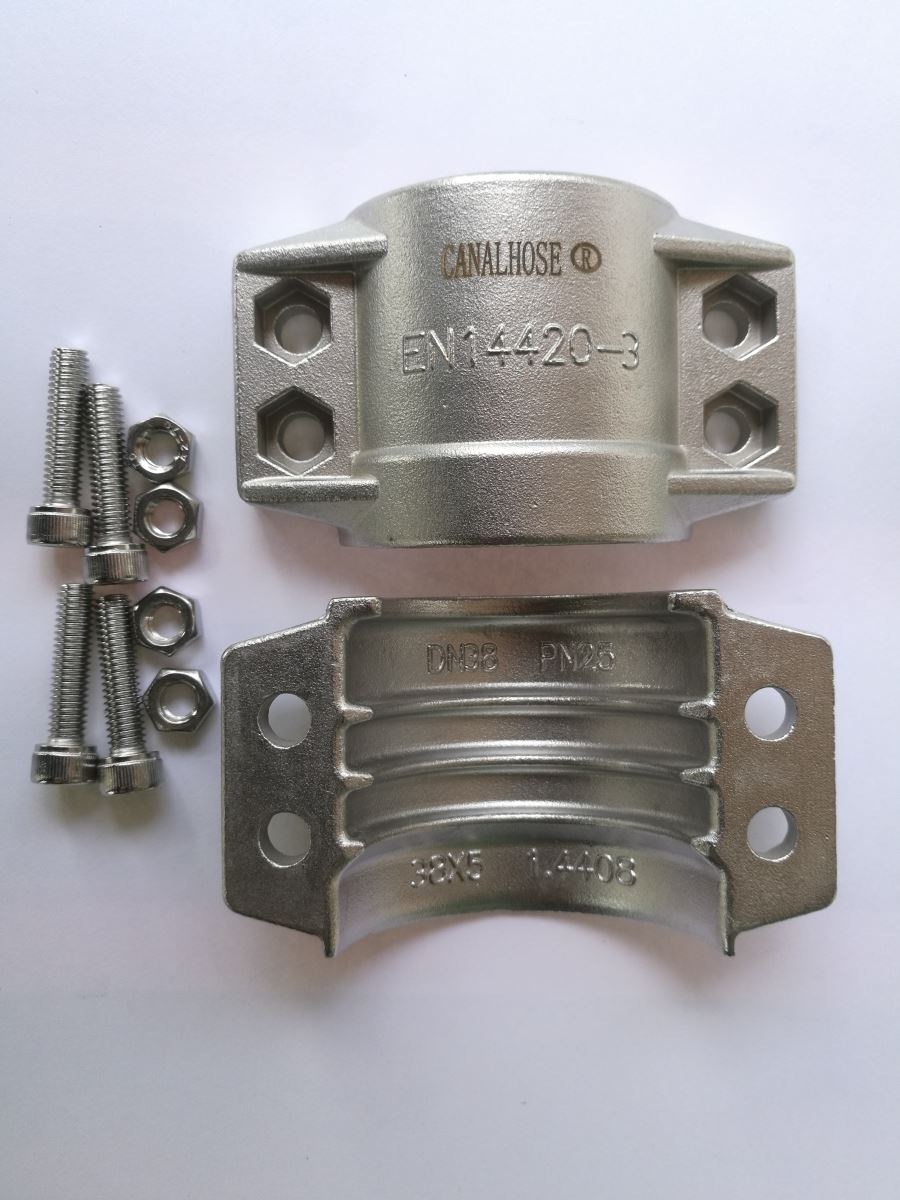

產品材質: 左圖材質為SS316(另有常用材質鋁合金-鍛造或者黃銅-鍛造)

Product material: Left for SS316 (containing aluminum alloy forgery or brass forgery )

產品組成: 2片母體+4個螺桿+4個螺母(螺桿及螺母材質正常配碳鋼,可改用不銹鋼)

Product composition: 2pcs main part + 4 screws +4nuts (Screw and nut with normal carbon steel material, can also use stainless steel)

產品標準: DIN2817/2826/EN14420-3

Product standard: DIN2817/2826/EN14420-3

特性一覽   Features a view

· 配件可重復使用,不因軟管損壞而重新購置接頭

Accessories can reuse, not due to the hose damage to purchase fitting

· 抗壓性能穩定，適合工作壓力25公斤

Compressive performance stability, suitable for working pressure is 25 kg

· 現場快速安裝

The scene quickly to install

· 連接牢固，不易脫落

Connect firmly, not easy to fall off

· 容易操作

Easy operation

· 平面密封，嚴絲合縫

Plane sealing, match exactly

· 可省去扣壓機的投資,有效降低成本

Will save the investment for withhold machine, effectively reduce the cost

· 螺栓可調節，可適應膠管因老化延伸造成的通徑變化

The bolt is adjustable and can adapt to the hose size changes due to ageing extension

應用領域

飲料工業

化學工業
